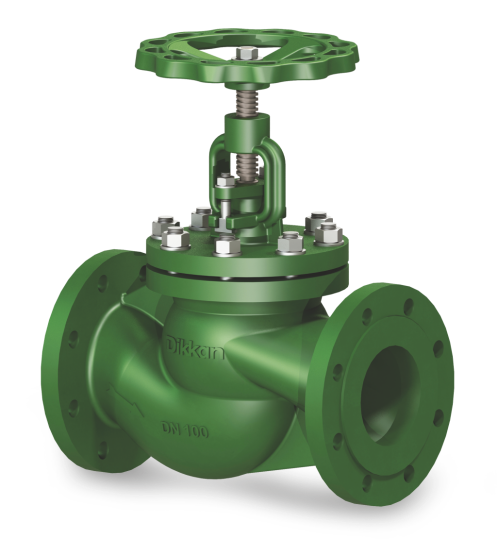

Globe Valve Straight Regulating Disk Bolted Bonnet

Globe Valve

Cast Iron
Stainless Steel
Straight

Technical Specifications

Standard	DIN 86251 STOP Type (DIN 3356)
Face to Face	EN 558 Series 1 (DIN 3202 F1)
Flange Dimension	DIN Flanges acc. to EN 1092-2/B (DIN 2501)
Flange Connection	PN10/16
Options	Drain plug

DIN Cast Iron Dikkan globe valves with stainless steel trim, pressure rating PN 4/6/10/16, straight pattern, bolted bonnet, outside screw & yoke. Raised face flanges according to DIN. TYPE APPROVED.
Application: Steam, cold and hot water, oil

Contact
Dikkan Valve
Kemalpaşa OSB Mah.
İzmir Kemalpaşa Asfaltı Cad.
No:30 İç Kapı No:1,
Kemalpaşa / İzmir / Türkiye
Phone: 0090 232 877 17 14
Fax: 0090 232 877 17 15

Write e-mail

My Dikkan

In order to use all functions and advantages of the site, you need a user account.

		Working Pressure [bar]		Hydro Test Pressure [bar]
Bore	Pressure Rating	120 ℃	180 ℃	Casing	Closure
DN 15 - DN 200	PN16	16	10	24	17.6
DN 250	PN10	10	6	15	11
DN 300 - DN 350	PN 6	6	4	9	6.6
DN 400 - DN 600	PN 4	4	2	6	4.4

Part No.	Component	Material
1	Body	EN-GJL250	EN-JL 1040	GG25
2	Bonnet	EN-GJL250	EN-JL 1040	GG25
3	Seats	X5CrNi18-10	1.4301	AISI304
4	Disc (<=65)	X20Cr13	1.4021	AISI420
4	Disc (>=80)	EN-GJS400-18-LT	EN-JS 1025	GGG40.3
5	Stem	X20Cr13	1.4021	AISI420
6	Stud Bolts, Nuts	Steel	Steel	Steel
7	Bonnet Gasket	Graphite	Graphite	Graphite
8	Gland Packing	Graphite	Graphite	Graphite
9	Handwheel	EN-GJL250	EN-JL 1040	GG25

DN [mm]	Flange Connection	ØD [mm]	L [mm]	H [mm]	ØR [mm]	Weight [kg]	IMPA Code	Dikkan Ordering Code
15	PN16	95	130	165	120	3.8	-	10.147.RG.PN16.015
20	PN16	105	150	165	120	4	-	10.147.RG.PN16.020
25	PN16	115	160	175	140	5	-	10.147.RG.PN16.025
32	PN16	140	180	180	140	7	-	10.147.RG.PN16.032
40	PN16	150	200	220	160	11	-	10.147.RG.PN16.040
50	PN16	165	230	230	160	13	-	10.147.RG.PN16.050
65	PN16	180	290	245	180	18	-	10.147.RG.PN16.065
80	PN16	200	310	295	200	25	-	10.147.RG.PN16.080
100	PN16	220	350	330	225	35	-	10.147.RG.PN16.100
125	PN16	250	400	365	250	55	-	10.147.RG.PN16.125
150	PN16	285	480	420	300	75	-	10.147.RG.PN16.150
175	PN16	315	550	500	400	115	-	10.147.RG.PN16.175
200	PN16	340	600	510	400	135	-	10.147.RG.PN16.200
200	PN10	340	600	510	400	135	-	10.147.RG.PN10.200
250	PN10	395	730	600	520	215	-	10.147.RG.PN10.250
300	PN10	445	850	670	520	305	-	10.147.RG.PN6.10.300
350	PN10	505	980	755	640	405	-	10.147.RG.PN6.10.350
400	PN10	565	1100	835	640	550	-	10.147.RG.PN4.10.400
450	PN10	615	1200	920	640	690	-	10.147.RG.PN4.10.450
500	PN10	670	1250	970	640	835	-	10.147.RG.PN4.10.500
600	PN10	780	1450	1200	640	1050	-	10.147.RG.PN4.10.600

Product Code	Flange	WP/OD/FL	DN
D0010147XRPPP00703000000	PN10	PN6/10/10	300
D0010147XRPPP00703500000	PN10	PN6/10/10	350
D0010147XRPPP18104000000	PN10	PN4/10/10	400
D0010147XRPPP18104500000	PN10	PN4/10/10	450
D0010147XRPPP18105000000	PN10	PN4/10/10	500
D0010147XRPPP18106000000	PN10	PN4/10/10	600
D0010147XRPPP18302000000	PN10	PN10/10/10	200
D0010147XRPPP18302500000	PN10	PN10/10/10	250
D0010147XRPPP18400150000	PN16	PN16/16/16	15
D0010147XRPPP18400200000	PN16	PN16/16/16	20
D0010147XRPPP18400250000	PN16	PN16/16/16	25
D0010147XRPPP18400320000	PN16	PN16/16/16	32
D0010147XRPPP18400400000	PN16	PN16/16/16	40
D0010147XRPPP18400500000	PN16	PN16/16/16	50
D0010147XRPPP18400650000	PN16	PN16/16/16	65
D0010147XRPPP18400800000	PN16	PN16/16/16	80
D0010147XRPPP18401000000	PN16	PN16/16/16	100
D0010147XRPPP18401250000	PN16	PN16/16/16	125
D0010147XRPPP18401500000	PN16	PN16/16/16	150
D0010147XRPPP18401750000	PN16	PN16/16/16	175
D0010147XRPPP18402000000	PN16	PN16/16/16	200
