Quick Closing Valve Straight Hydraulic Pnuematic Mechanical

Quick Closing Valve

Stainless Steel
Stainless Steel
Straight

Technical Specifications

Design	Bonnet: With Hydraulic Pnuematic Mechanical Operated
Face to Face	Release Cylinder & Pull Ring
Face to Face	EN 558 Series 1 (DIN 3202 F1)
Flange Dimension	DIN Flanges acc. to EN 1092-1/B (DIN 2501)
Flange Connection	Impuls unit for remote control
Options	Special flange drilling acc. to ANSI or JIS

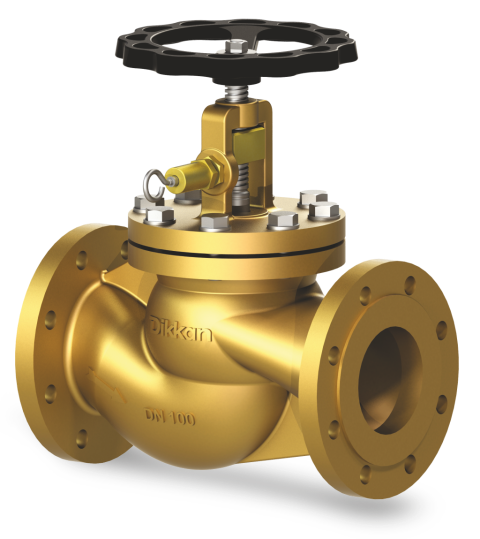

Stainless Steel Dikkan quick closing valves are specifically designed for marine use, providing a quick shut-off in emergency situations from outside the engine room and above the water line. Dikkan quick closing valves are equipped with a release cylinder for pneumatic, hydraulic, mechanical activation or automatic release in case of fire. TYPE APPROVED.
Application: On board ships for fuel, oil etc.

Contact
Dikkan Valve
Kemalpaşa OSB Mah.
İzmir Kemalpaşa Asfaltı Cad.
No:30 İç Kapı No:1,
Kemalpaşa / İzmir / Türkiye
Phone: 0090 232 877 17 14
Fax: 0090 232 877 17 15

Write e-mail

My Dikkan

In order to use all functions and advantages of the site, you need a user account.

		Working Pressure [bar]	Hydro Test Pressure [bar]
Bore	Pressure Rating	150 ℃	Casing	Closure
DN 15 - DN 150	PN16	16	24	17.6
DN 175 - DN 200	PN10	10	15	11

Part No.	Component	Material
1	Body	GX5CrNiMo19-11-2	1.4408	AISI316
2	Bonnet	GX5CrNiMo19-11-2	1.4408	AISI316
3	Seats	X5CrNiMo17-12-2	1.4401	A4
4	Disc	GX5CrNiMo19-11-2	1.4408	AISI316
5	Stem	X5CrNiMo17-12-2	1.4401	A4
6	Spring	X5CrNiMo17-12-2	1.4401	A4
7	Stud Bolts, Nuts	X5CrNiMo17-12-2	1.4401	A4
8	Bonnet Gasket	Graphite	Graphite	Graphite
9	O-ring	NBR	NBR	NBR
10	Handwheel	EN-GJL250	EN-JL 1040	GG25
11	Retainer block	CuZn39Pb3	CW614N	Ms58
12	Cylinder	CuZn39Pb3	CW614N	Ms58

DN [mm]	Flange Connection	ØD [mm]	L [mm]	H [mm]	ØR [mm]	C [mm]	Weight [kg]	IMPA Code	Dikkan Ordering Code
15	PN16	95	130	175	120	165	4	-	13.666.PN16.015
20	PN16	105	150	175	120	165	4.5	-	13.666.PN16.020
25	PN16	115	160	190	140	165	5	-	13.666.PN16.025
32	PN16	140	180	190	140	165	7	-	13.666.PN16.032
40	PN16	150	200	205	160	165	11	-	13.666.PN16.040
50	PN16	165	230	215	160	165	13	-	13.666.PN16.050
65	PN16	185	290	245	180	170	19	-	13.666.PN16.065
80	PN16	200	310	270	200	170	25	-	13.666.PN16.080
100	PN16	220	350	305	225	170	35	-	13.666.PN16.100
125	PN16	250	400	330	250	170	55	-	13.666.PN16.125
150	PN16	285	480	380	300	170	75	-	13.666.PN16.150
175	PN10	315	550	450	400	170	115	-	13.666.PN10.175
200	PN10	340	600	450	400	175	135	-	13.666.PN10.200

Product Code	Flange	WP/OD/FL	DN
D0013666XXPPP18301750000	PN10	PN10/10/10	175
D0013666XXPPP18302000000	PN10	PN10/10/10	200
D0013666XXPPP18400150000	PN16	PN10/16/16	15
D0013666XXPPP18400200000	PN16	PN10/16/16	20
D0013666XXPPP18400250000	PN16	PN10/16/16	25
D0013666XXPPP18400320000	PN16	PN10/16/16	32
D0013666XXPPP18400400000	PN16	PN10/16/16	40
D0013666XXPPP18400500000	PN16	PN10/16/16	50
D0013666XXPPP18400650000	PN16	PN10/16/16	65
D0013666XXPPP18400800000	PN16	PN10/16/16	80
D0013666XXPPP18401000000	PN16	PN10/16/16	100
D0013666XXPPP18401250000	PN16	PN10/16/16	125
D0013666XXPPP18401500000	PN16	PN10/16/16	150
